Request a quote below to customise your curtain
Curtain Installation Measurement Guide
-
Measure the Width (Opening A):
Use a tape measure to find the width of the opening. Measure at the top, middle, and bottom to determine the widest point.
-
Measure the Height (Opening B):
Measure from the top of the intended mounting area to the bottom of the opening. Take multiple height measurements to ensure accuracy.
-
Review Specifications:
Consult the PVC/Overlap specifications table to confirm the recommended usage for your curtain type.
-
Determine Fixing Type:
Decide whether the curtain will be installed as a face fix (attached to the wall) or under lintel (mounted on the ceiling or top of the opening). -
Need Assistance?:
If you have any questions or need clarification on measurements or specifications, please feel free to contact us at 01282 277 710 for support. Make sure to double-check all measurements to ensure a perfect fit!
Overlap Instructions
-
Partial Overlap - Internal (Light Duty)
Recommended Strip Thickness: 1.7mm to 2mm
-
Overlap Specifications:
200mm Wide: 1 hook on each side, 35% overlap
300mm Wide: 1 hook on each side, 25% overlap
400mm Wide: 2 hooks on each side, 55% overlap
-
Maximum Overlap - External (Heavy Duty)
Recommended Strip Thickness: 3mm to 4mm
-
Overlap Specifications:
200mm Wide: 2 hooks on each side, 78% overlap
300mm Wide: 3 hooks on each side, 78% overlap
300mm Wide: 3 hooks on each side, 78% overlap
Availability: In Stock
- Delivery Free Shipping On All UK Orders
- Satisfaction Guaranteed.
- Secure Payments
- Need help? Call Us 01282 277 710 or email sales@questorm.co.uk
Description

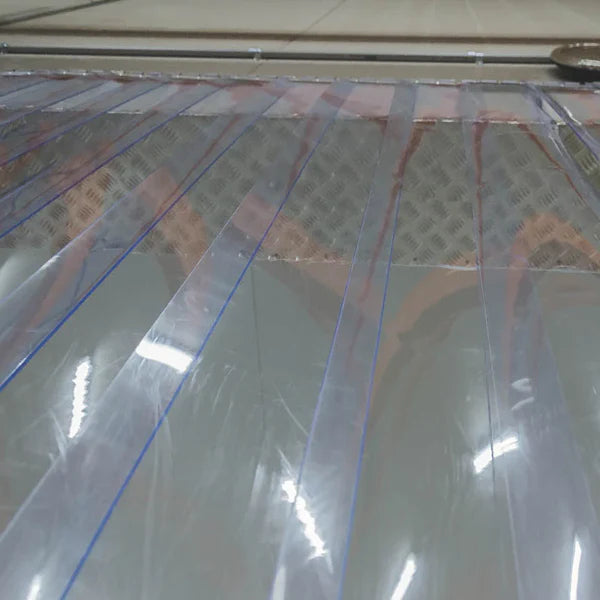

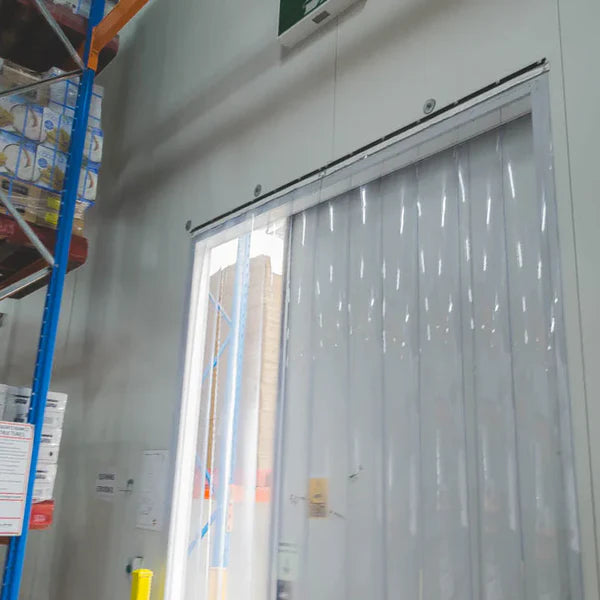

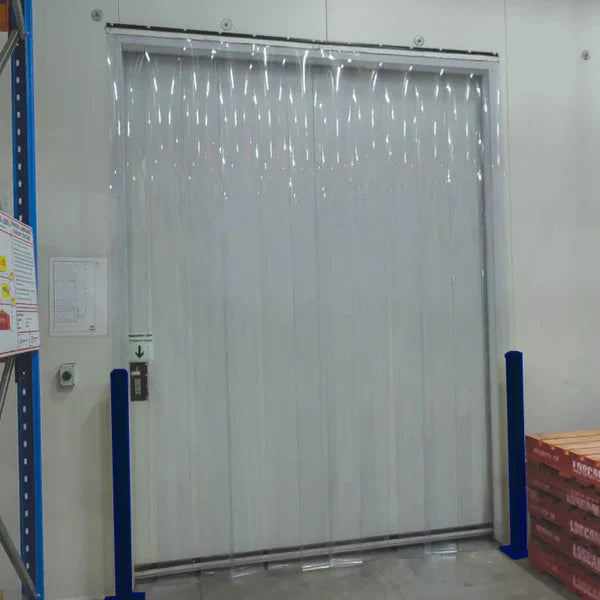

Made-to-Measure Clear PVC Strip Curtains
made-to-measure clear PVC strip curtains are a versatile solution for controlling pedestrian traffic, personnel access, and environmental factors in high-traffic areas. These long PVC strips are securely fixed to a hanging rail, forming a flexible vertical barrier that can be easily mounted across doorways. Perfect for large spaces like factories and warehouses, these strip curtains offer an effective way to manage temperature, block contaminants, and maintain a clean, safe environment.
Before purchasing, ensure you select the correct PVC thickness, overlap, and fitting system that suits your specific space and requirements.
Common Uses and Benefits
PVC strip curtains are designed to protect your workspace from insects, dust, debris, and other contaminants entering through open doorways. They provide numerous benefits, such as temperature control and enhanced privacy, while also creating a safer environment for staff and visitors.
Typical applications include:
- Warehouses
- Commercial Kitchens
- Walk-In Fridges, Freezers, and Cold Rooms
- Loading Bays
- Farm Environments
Our strip curtains come in a variety of lengths, widths, and thicknesses, allowing you to choose the ideal configuration for your specific environment. Whether you need to manage traffic flow, control temperature, or prevent debris from entering, strip curtains are a practical, cost-effective solution for your business.
